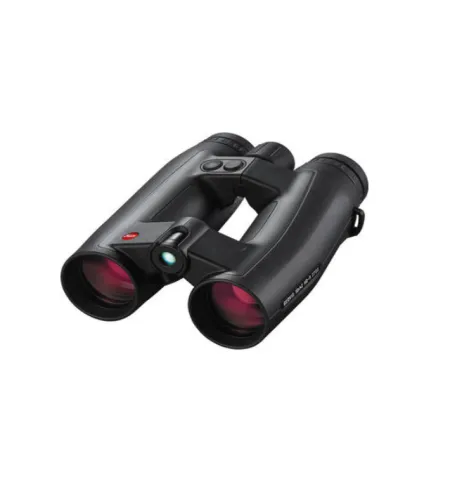

Binocular LEICA GEOVID 10X42 HD-B 3000 EDITION 2019

LEICA GEOVID 10X42 HD-B 3000 EDITION 2019

LEICA GEOVID (10 X 42 HD-B 3000)

Magnification 10 x

Front lens diameter 42 mm

Exit pupil 4.2 mm

Twilight factor 20.5

Field of view at 1,000 yds/m 374 ft / 114 m

Close focus range approx. 16.5 ft / 5.0 m

Diopter compensation ± 4 dpt

Distance measurement:

Range 10 yds / 10 m to approx. 3,000 yds / 2,750 m

Equivalent horizontal range (EHR) 10 yds to 1,200 yds / 10 m to 1,100 m

Measuring accuracy ± 0,5 yds at 10 - 200 yds / ± 0,5 m at 10 - 200 m

± 1 yds at 200 - 400 yds / ± 1 m at 200 - 400 m

± 0,5 % beyond 400 yds / ± 0,5 % beyond 400 m

Display LED display with 4 characters and

ambient-light-controlled brightness

Eyecup with twist-and-pull action yes, detachable, with 4 click-stops

Focusing internal focusing with center focusing barrel

Prism system Perger Porro-System

Coating HDC® multicoating, AquaDura® lens coating

Waterproof waterproof to 16.5 ft / 5 m

Body magnesium, nitrogen-filled

Dimensions (W x H x D) 4.9 x 7.0 x 2.8 in / 125 x 178 x 70 mm

Weight approx. 33.3 oz / 980 g incl. battery

Yard/Meter switch yes

Laser eye-safe, invisible light laser

compliant with EN and FDA Class 1

Measuring mode scan mode, single measurement

Ballistic functions Equivalent horizontal range (EHR), point of aim

correction, number of clicks required on elevation turret

Bullet trajectories 12 fixed pre-installed curves

Integration of custom data using microSD card

Power supply 1 x 3 V/ CR2 lithium button cell

The new Leica Geovid HD-B 3000 for the first time ever allow linear distance determination of up to 3,000 yards (2,750 metres). Leica Geovid HD-B 3000 offer a worldwide unique combination of ABC® ballistic, optical quality and ergonomic design. The ballistic measurement values are available in three output formats: holdover, click adjustment and equivalent horizontal range (EHR). Barometric pressure, temperature and angle are also included in the measurements and calculate the correct point of aim with the highest precision. With a microSD memory card and the Leica ballistic calculator users can import their individual ballistic parameters to their Leica Geovid HD-B 3000 and thus receive measuring data perfectly adjusted to load and calibre.

Next to the enhanced distance determination for long distances model feature a newly designed LED display, allowing excellent readability of the measured data under any light and weather conditions.
