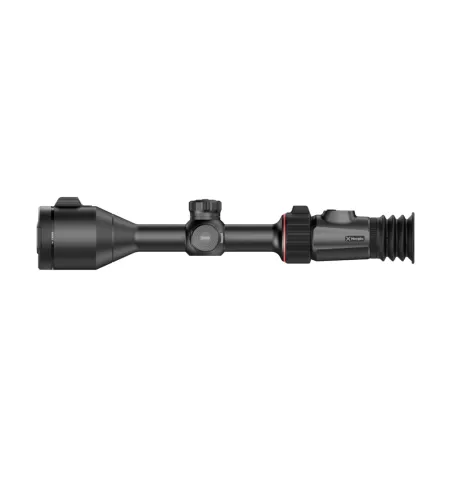

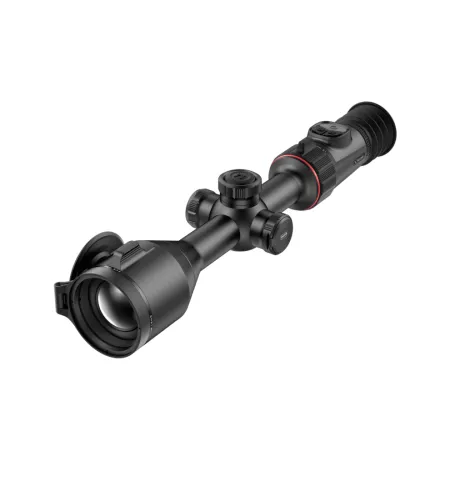

Nocpix ACE H50 thermal sight

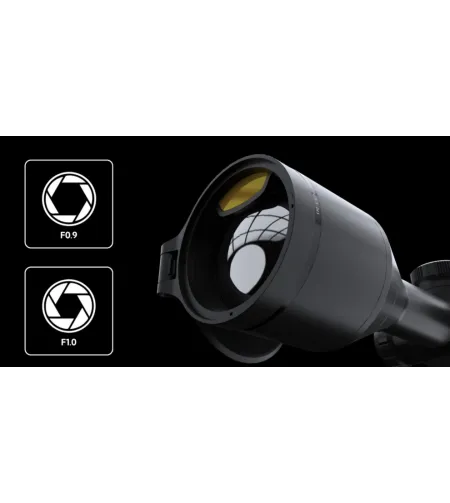

New for 2025, the Nocpix ACE Series delivers next level thermal imaging and a full complement of exclusive features. These thermal weapon sights are available with a 60mm/F1.0 lens, a 50mm/F0.9 lens, and a 35mm/F0.9 lens. The 60mm/F1.0 version is offered with an integrated laser range finder and the 50mm/F0.9 versions are offered both with and without an integrated laser range finder. All versions of the Nocpix ACE are outfitted with a high-sensitivity thermal detector with impressive NETD ratings between ≤15mK and ≤18mK, allowing users to observe clearly defined animal silhouettes, anatomy, and behavior at extreme distances. Images are projected onto a 1.03" AMOLED display, and uses can enjoy an industry-leading ocular zoom. This design eliminates the blurring and distortion common among thermal optics that only have digital zoom. Additionally, the Nocpix ACE features a dual battery system with a built-in 4000mAh battery and a replaceable 18650 battery to accommodate extended hunts.


Features of the Nocpix ACE Series:


Available with a 60mm/F1.0 lens, a 50mm/F0.9 lens, and a 35mm/F0.9 lens Select models feature an integrated laser range finder High-Sensitivity Thermal Detector: ≤15mK to ≤18mK NETD ratings 1.03" AMOLED display Dual battery system Magnification: Native/Optical: 3X Base, Digital: 8X Battery: Internal USB-C charging battery and removable 18650 style rechargeable battery, allows hot-swapping for indefinite runtime Compatibility: Bolt action or semi-automatic rifles using standard 30 mm mounts and rings



Key Product Specifications:

Sensor Nocpix 640 (640×512) 60 Hz Objective Lens 50 mm F/0.9 NETD ≤15 mK Magnification Native/Optical: 3X Base, Digital: 8X Data Sheet ACE H50 Data Sheet Product Manual ACE Series Manual Device Technology Thermal Imaging Pixel Size 12 μm Display Resolution AMOLED 2560×2560 Detection Range 2850 Yards Color Palettes White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian Reticles 8 (1 Dynamic, 6 Static, 1 DIY) Rangefinder Integrated 1300 yd LRF
