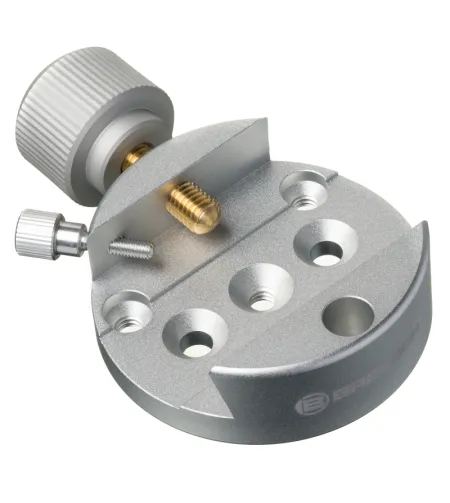

BRESSER Dovetail clamp Messier/ES/GP/Vixen

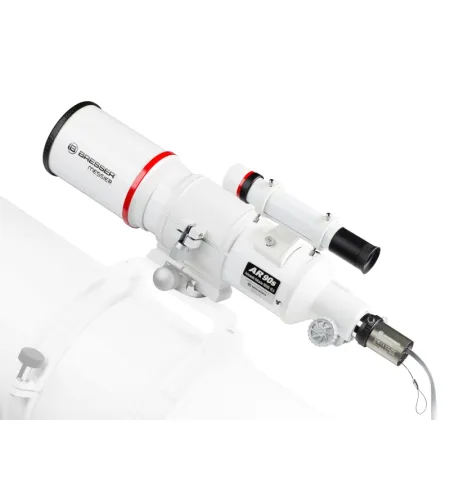

Universal dovetail clamp suitable for all optical tubes which are equipped with a standard 44mm dovetail rail (Messier/ES/GP/Vixen). Also a screw kit is included for mounting the dovetail clamp direct on the top of the handle of all BRESSER Messier und EXPLORE-SCIENTIFIC telescopes. Thus a parallel mounted guiding telescope can be set up very easy and enables long exposure astrophotagraphy with autoguiding. The prism clamp has 2 x 6mm countersunk holes (35mm hole spacing) and 3 additional 1/4" photo tapped holes at 120 degrees angular distance on a pitch circle diameter of 55 mm to allow a versatile adaptation to a variety of other telescopes and adapter plates.


FEATURES

• Universal dovetail clamp
• Suitable for 44mm dovetail rail of Messier/ES/GP/Vixen
• Screw set for Messier/ES handle included
• For piggy-back mounting of a guiding telescope
• Enables astrophotography with autoguiding
• CNC machined Aluminum
• Additional 1/4" photo thread holes available

SCOPE OF DELIVERY

• Dovetail clamp

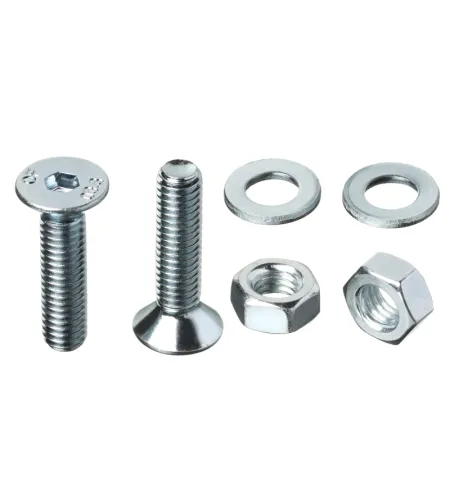

• Screw set (2pcs M6x25mm)

Colour: silver Material: Aluminium
